The Intra2net system implements IPSec key negotiation using the strongSwan service. Starting with Intra2net System version 7.0.4, you can choose between different versions of strongSwan in the "" menu.
Older Intra2net system versions exclusively used variants of strongSwan version 4. From version 7.0.4 onwards, strongSwan 6 is also available. The option to choose between these strongSwan versions will persist across several future releases of the Intra2net system.
Newly installed Intra2net systems, as well as those with no previous IPsec VPN configuration, use strongSwan 6. For all other systems, updating to Intra2net System version 7.0.4 or later will not automatically change the version of strongSwan currently in use.
strongSwan 6 provides the foundation for supporting IKEv2 in the future. Additionally, strongSwan 6 benefits from regular updates. Therefore, it is planned to migrate all Intra2net systems to strongSwan 6 in a future update. Please refer to the release notes of the respective Intra2net system versions for further information.
Therefore, all users are recommended to switch to strongSwan 6 for testing purposes. Should any issues arise, it is possible to revert to the previous version at any time and address the problems systematically, for example, with the assistance of your Intra2net partner and support.
When upgrading to strongSwan 6, certain configuration scenarios that previously triggered a warning will now result in errors that prevent the configuration from being saved. This primarily affects the configuration of multiple VPN tunnels to the same peer.
When using strongSwan 6, all shared settings for these connections to the same peer must be identical in this case. Only the tunnel settings may differ.

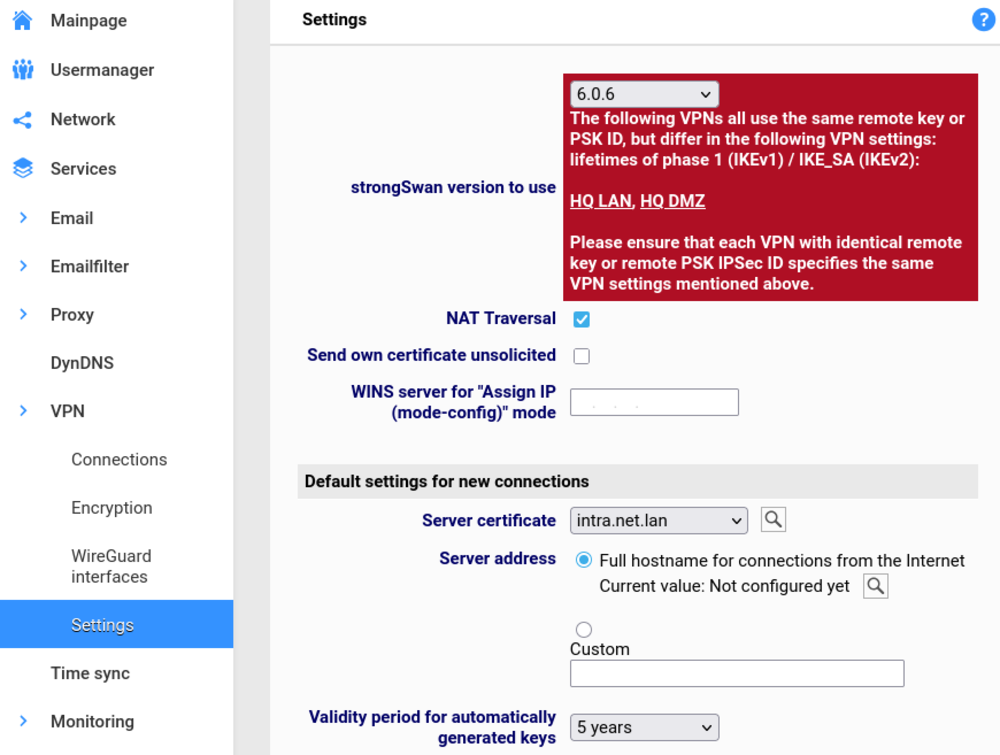

If such a configuration problem occurs, it will manifest itself in a manner similar to what is shown here:
To resolve the issue, first note down all the connection names listed in the error message. Review the settings for these connections and compare them, paying particular attention to those mentioned in the error message. The only settings that should differ are the tunnel settings. Save the corrected settings and repeat this process until the warning no longer appears. Then try changing the strongSwan version again.
