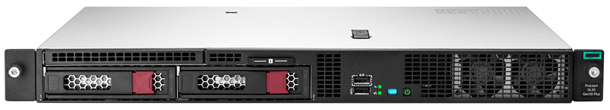

HPE ProLiant DL20 Gen10 Plus


HPE ProLiant DL20 Gen10 Plus

Configuration Proposal

1x P44113-421 HPE ProLiant DL20 Gen10 Plus, Intel Xeon E-2314 QuadCore 2.8 GHz,
16 GB RAM, 2x LAN, backplane for HDDs with LFF (3.5") LP carrier, rackmount kit
2x 861681-B21 2 TB SATA hard disk 3.5" hot-plug, LFF LP carrier
1x P21106-B21 I350-T4 4-port Gigabit network card, PCIe x4

Certified Models

P44112-421 2x LFF (3.5") Non-Hot Plug Backplane for hard disks without carrier
P44113-421 2x LFF (3.5") Hot Plug Backplane
P44114-421 4x SFF (2.5") Hot Plug Backplane
P44115-421 4x SFF (2.5") Hot Plug Backplane

Notice: The device does not have a loudspeaker. Therefore, no acoustic warning is possible when using RAID. warning is possible in the event of a hard disk failure. The use of a monitoring system is therefore recommended.



Memory Expansion

P43019-B21 16 GB PC4-3200 ECC UDIMM Memory Expansion

Certified network cards

P21106-B21 I350-T4 4-port Gigabit network card, PCIe x4

Certified hard disks and SSDs

801882-B21 1 TB SATA hard disk 3.5" non-hot-plug, without HDD carrier
801888-B21 4 TB SATA hard disk 3.5" non-hot-plug, without HDD carrier
861686-B21 1 TB SATA hard disk 3.5" hot-plug, LFF LP carrier
861681-B21 2 TB SATA hard disk 3.5" hot-plug, LFF LP carrier
861683-B21 4 TB SATA hard disk 3.5" hot-plug, LFF LP carrier
P40503-B21 960 GB SATA-SSD 2.5" Hot-Plug, SFF Basic Carrier
P40504-B21 1.92 TB SATA-SSD 2.5" Hot-Plug, SFF Basic Carrier

Notice: Make sure that the hard disk and carrier match the backplane of the server (see above).

Rack

Height of the Server 1U, Depth only 382 mm
A rackmount kit is supplied by HPE
Fits racks from HPE and many other manufacturers
Alternatively, the following installation kit can be used: Racksolutions 122-2413

BIOS Settings

For correct operation, the following settings must be configured in the BIOS setup:

System Configuration > BIOS/Platform Configuration > System Options > Server Availability
Automatic Power-On : Always Power On
System Configuration > BIOS/Platform Configuration > Processor Options
Processor x2APIC Support : Disabled
System Configuration > BIOS/Platform Configuration > Boot Options
Boot Mode : UEFI Mode
System Configuration > BIOS/Platform Configuration > Storage Options > SATA Controller Options
Embedded SATA Configuration : SATA AHCI Support
System Configuration > BIOS/Platform Configuration > Server Security
Secure Boot Settings > Attempt Secure Boot : Disabled
