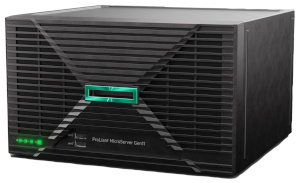

HPE ProLiant MicroServer Gen11
Configuration Proposal
| 1x | P68820-421 | HPE ProLiant MicroServer G11, Intel Xeon E2414 Quadcore 2.6 GHz, 16 GB RAM, 4x LAN, case for 4x 3.5" SATA HDDs |
| 2x | 801882-B21 | 1 TB SATA hard disk 3.5" non-hot-plug, without HDD carrier |
Certified Models
P68819-421, P68820-421, P68821-421
Notice: Despite its small size, the device is designed as a server for reliable 24/7 operation . The necessary ventilation generates a constant operating noise. It is therefore recommended to operate the device in a server room and not at a work place.
Certified hard disks and SSDs
- The device has 4 bays for hard drives in 3.5" format (LFF)
- The hard drives are fastened with screws and no special carriers are required
- Adapters are required for SSDs in 2.5" format (SFF)
- The backplane for the 4 bays only supports SATA
 |
801882-B21 | 1 TB SATA hard disk 3.5" non-hot-plug, without HDD carrier |
|
801888-B21 | 4 TB SATA hard disk 3.5" non-hot-plug, without HDD carrier | |
P40496-B21 | 240 GB SATA SSD 2.5", SFF Basic Carrier, adapter required | |
P65272-B21 | 480 GB SATA SSD 2.5", SFF Basic Carrier, adapter required | |
P40498-B21 | 960 GB SATA SSD 2.5", SFF Basic Carrier, adapter required | |
870213-B21 | Adapter for 2.5" (SFF) SSDs to 3.5" (LFF) |
Notice: The device does not have a loudspeaker. When using RAID, it is therefore not possible to receive an acoustic warning if a hard drive fails. The use of a monitoring system is therefore strongly recommended.
Certified network cards
|
P21106-B21 | HPE I350-T4 4-port Gigabit network card, PCIe |
|
P08443-B21 | Intel E810-XXVDA2 2-port SFP28 network card, 10/25 GBit/s, PCIe |
Memory Expansion
|
P64336-B21 | 16 GB DDR5-4800 ECC UDIMM memory extension |
|
P64339-B21 | 32 GB DDR5-4800 ECC UDIMM memory extension |
Different DIMM memory sizes cannot be mixed within one memory channel
iLO Management
- The system always includes the iLO Baseboard Management Controller (BMC)
- It can be accessed via one of the integrated network ports or a dedicated network port
- If iLO is to be used, Intra2net recommends using only the dedicated iLO network port to increase reliability
|
P65741-B21 | Dedicated iLO network port + M.2 slot + COM port |
BIOS Settings
For correct operation, the following settings must be configured in the BIOS setup:
|
System Configuration > BIOS/Platform Configuration > System Options > Server Availability Automatic Power-On : Always Power On |
|
System Configuration > BIOS/Platform Configuration > Storage Options > SATA Controller Options Embedded SATA Configuration : SATA AHCI Support |
|
System Configuration > BIOS/Platform Configuration > Server Security Secure Boot Settings > Attempt Secure Boot : Disabled |
