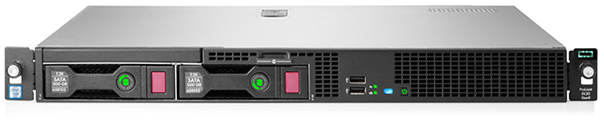

HPE ProLiant DL20 Gen9



HPE ProLiant DL20 Gen9

Suggested Configuration

1x 823556-B21 HPE ProLiant DL20 G9, Intel Xeon E3-1220v5 QuadCore 3 GHz,
8 GB RAM, 2x LAN, rackmount kit
2x 861691-B21 1 TB SATA hard disk 3.5" non-hot plug, HP SmartDrive bracket
1x 615732-B21 332T 2-port Gigabit network card, PCIe x1

Certified Models

823556-B21, 829889-B21, 830701-425



Memory Expansion

805667-B21 4 GB PC4-2133 ECC UDIMM memory expansion
805669-B21 8 GB PC4-2133 ECC Dual Rank UDIMM memory expansion

Certified Network Cards

615732-B21 332T 2-port Gigabit network card, PCIe x1
647594-B21 331T 4-port Gigabit network card, PCIe x4

Certified Hard Drives

861691-B21 1 TB SATA hard drive 3.5" non-hot plug, HPE SmartDrive bracket
861676-B21 2 TB SATA hard drive 3.5" non-hot plug, HPE SmartDrive bracket

Optical Drives

726536-B21 HPE DVD-ROM, SATA
816284-B21 HPE DL20 Gen9 Power Cable Kit, required for internal DVD-ROM

If you do not order an optical drive, a USB CDROM is required for the installation.

Rack

Server height 1U, depth only 383 mm
A rackmount kit is supplied by HPE
Fits racks from HPE and many other manufacturers
Alternatively, the following installation kit can be used: Racksolutions 122-2413

BIOS Settings

For correct operation, the following settings must be configured in the BIOS setup:

System Configuration > BIOS/Platform Configuration > System Options > SATA Controller Options
Embedded SATA Configuration : Enable SATA AHCI Support
System Configuration > BIOS/Platform Configuration > System Options > Processor Options
Processor x2APIC Support : Disabled
System Configuration > BIOS/Platform Configuration > Boot Options
Boot Mode : Legacy BIOS Mode
System Configuration > BIOS/Platform Configuration > Server Availability
Automatic Power-On : Always Power On

After any changes to the built-in network cards or connected drives, the change must be confirmed in the BIOS with F2 and then rebooted via the BIOS menu. Otherwise the built-in PCIe cards are not addressable.
