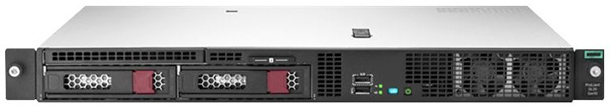

HPE ProLiant DL20 Gen10



HPE ProLiant DL20 Gen10

Configuration Proposal

1x P17079-B21 HPE ProLiant DL20 G10, Intel Xeon E-2224 QuadCore 3.4 GHz,
16 GB RAM, 2x LAN, enclosure for HDDs with LFF low profile carrier, rackmount kit
2x 861686-B21 1 TB SATA hard disk 3.5" non-hot-plug, LFF low profile carrier
1x 615732-B21 332T 2-port Gigabit network card, PCIe x1

Certified Models

P17079-B21, P06476-B21, P08335-B21, P06477-B21, P06478-B21, P06479-B21



Memory Expansion

879505-B21 8 GB PC4-2666 ECC UDIMM Memory Expansion

Certified network cards

615732-B21 332T 2-port Gigabit network card, PCIe x1
811546-B21 366T 4-port Gigabit network card, PCIe x4

Certified Hard Drives

801882-B21 1 TB SATA hard disk 3.5" non-hot-plug, without HDD carrier
861686-B21 1 TB SATA hard disk 3.5" non-hot-plug, LFF low profile carrier
861681-B21 2 TB SATA hard disk 3.5" non-hot-plug, LFF low profile carrier

Rack

Height of the Server 1U, Depth only 382 mm
A rackmount kit is supplied by HPE
Fits racks from HPE and many other manufacturers
Alternatively, the following installation kit can be used: Racksolutions 122-2413

BIOS Settings

For correct operation, the following settings must be configured in the BIOS setup:

System Configuration > BIOS/Platform Configuration > System Options > Server Availability
Automatic Power-On : Always Power On
System Configuration > BIOS/Platform Configuration > Processor Options
Processor x2APIC Support : Disabled
System Configuration > BIOS/Platform Configuration > Boot Options
Boot Mode : Legacy BIOS Mode
System Configuration > BIOS/Platform Configuration > Storage Options > SATA Controller Options
Embedded SATA Configuration : SATA AHCI Support
