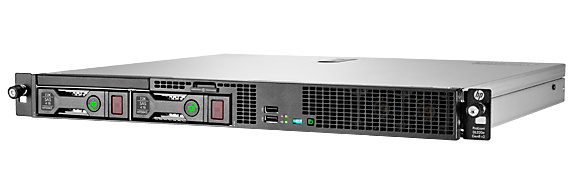

HP Proliant DL320e G8 v2

Configuration Proposal

1x	726042-425	HP DL320e G8v2, Intel Xeon E3-1220v3 QuadCore, 4 GB RAM, 2x Gigabit-NIC onboard
2x	658071-B21	500 GB SATA hard drive 3.5" Hot-Plug
1x	503746-B21	NC112T Gigabit network card, PCIe x1
1x	727604-B21	Rackmount Rail Kit for ProLiant DL320e Gen8 v2

743490-421, 726042-425, 717170-421

	669320-B21	2 GB PC3-12800E UDIMM Memory extension
	669322-B21	4 GB PC3-12800E UDIMM Memory extension
	669324-B21	8 GB PC3-12800E UDIMM Memory extension

	503746-B21	NC112T Gigabit network card, PCIe x1
	615732-B21	332T 2-port Gigabit network card, PCIe x1

652241-B21

HP DVD-RW drive, 9.5mm height, SATA

If you do not order an optical drive, a USB CDROM is required for the installation.

	Server height 1U, depth only 383 mm
	A rackmount kit is not supplied, but must be ordered separately
	For racks from HP and many other manufacturers, the Original HP Rackmount Kit with the HP order number is suitable 727604-B21
	Alternatively, the following installation kit can be used: Racksolutions 122-2413

At least at least BIOS version P80 (09/01/2013) is required.

For correct operation, the following settings additionally must be made in the BIOS setup:

	System Options > USB Options > USB Port Controller Routing > USB 2.0 Controller
	System Options > SATA Controller Options > Embedded SATA Configuration > Enable SATA AHCI Support
	System Options > SATA Controller Options > Drive Write Cache > Enabled Note: If the SATA configuration has been changed, this option only appears after restarting
	Server Availability > Automatic Power-On > Always Power On
	Advanced Options > Advanced System ROM Options > Virtual Install Disk > Disabled
