libt2n::connection Class Reference

a connection between client and server. abstact. More...

#include <connection.hxx>

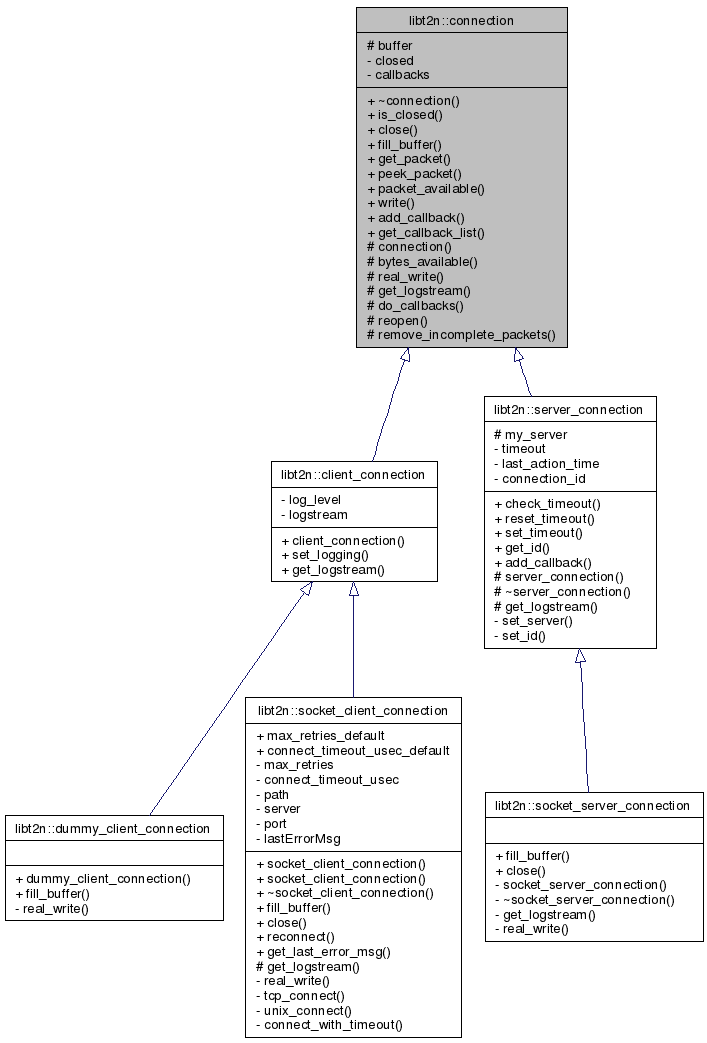

Inheritance diagram for libt2n::connection:
Inheritance graph
[legend]

List of all members.

Public Member Functions

virtual ~connection ()
bool is_closed ()
 is this connection closed or not
virtual void close ()
 close this connection
virtual bool fill_buffer (long long usec_timeout=-1, long long *usec_timeout_remaining=NULL)=0
 look for new data and store it in the local buffer
bool get_packet (std::string &data)
 read a complete data packet from the buffer. The packet is removed from the connection buffer.
unsigned int peek_packet (std::string &data)
 get (maybe incomplete) data of the next packet from the buffer. Does not remove the data from the connection buffer.
bool packet_available ()
 returns true if a complete data packet is in the buffer. retrieve it with get_packet().
void write (const std::string &data)
 send a blob to the peer
void add_callback (callback_event_type event, const boost::function< void()> &func)
 add a callback
std::list< boost::function
< void()> >
get_callback_list (callback_event_type event)
 get the callbacks in place for one event

Protected Types

typedef uint32_t packet_size_indicator

Protected Member Functions

 connection ()
packet_size_indicator bytes_available ()
 get the number of bytes being available as next complete packet
virtual void real_write (const std::string &data)=0
virtual std::ostream * get_logstream (log_level_values level)=0
void do_callbacks (callback_event_type event)
 an event has occured, execute the callbacks that are registered for this event
void reopen (void)
 reopen a already closed connection, removes incomplete packets from the buffer
void remove_incomplete_packets ()
 remove all data from buffer that is not a complete packet

Protected Attributes

std::string buffer

Private Attributes

bool closed
std::vector< std::list
< boost::function< void()> > >
callbacks
 vector initialized for all callback-types, all elements in each list will be called

Detailed Description

a connection between client and server. abstact.


Member Typedef Documentation

typedef uint32_t libt2n::connection::packet_size_indicator [protected]

Constructor & Destructor Documentation

libt2n::connection::connection (  )  [inline, protected]
libt2n::connection::~connection (  )  [virtual]

Member Function Documentation

void libt2n::connection::add_callback ( callback_event_type  event,
const boost::function< void()> &  func
)

add a callback

Parameters:
event event the function will be called at
func functor (see boost function) that will be called
Note:
use boost::bind to bind to member functions and parameters like this: 17 is a fixed parameter that is always added to the call c.add_callback(connection_closed,bind(&my_class::func_to_call_back, boost::ref(*this), 17));

Reimplemented in libt2n::server_connection.

References callbacks.

Referenced by libt2n::command_client::command_client(), and libt2n::command_client::replace_connection().

connection::packet_size_indicator libt2n::connection::bytes_available (  )  [protected]

get the number of bytes being available as next complete packet

References buffer.

Referenced by get_packet(), and packet_available().

void libt2n::connection::close (  )  [virtual]
void libt2n::connection::do_callbacks ( callback_event_type  event  )  [protected]

an event has occured, execute the callbacks that are registered for this event

Parameters:
event event type that has occured

References callbacks.

Referenced by close(), reopen(), libt2n::socket_client_connection::socket_client_connection(), and ~connection().

virtual bool libt2n::connection::fill_buffer ( long long  usec_timeout = -1,
long long *  usec_timeout_remaining = NULL
) [pure virtual]

look for new data and store it in the local buffer

Parameters:
usec_timeout wait until new data is found, max timeout usecs. -1: wait endless 0: return instantly
usec_timeout_remaining if non-NULL the function will write the not used time to the given target
Return values:
true if new data was found (does not mean that the received data is a complete packet though)

Implemented in libt2n::socket_client_connection, libt2n::socket_server_connection, and libt2n::dummy_client_connection.

Referenced by libt2n::command_client::read_hello(), and libt2n::command_client::read_packet().

std::list< boost::function< void()> > libt2n::connection::get_callback_list ( callback_event_type  event  )

get the callbacks in place for one event

Parameters:
event event the callbacks should be registered for
Returns:
std::list of functors (boost::function) with the callbacks
Note:
if you want to get the callbacks for all events, loop from 0 to __events_end

References callbacks.

Referenced by libt2n::command_client::replace_connection().

virtual std::ostream* libt2n::connection::get_logstream ( log_level_values  level  )  [protected, pure virtual]
bool libt2n::connection::get_packet ( std::string &  data  )

read a complete data packet from the buffer. The packet is removed from the connection buffer.

Parameters:
[out] data the data package
Return values:
true if packet found

References buffer, and bytes_available().

Referenced by libt2n::command_client::read_hello(), and libt2n::command_client::read_packet().

bool libt2n::connection::is_closed (  )  [inline]
bool libt2n::connection::packet_available (  )  [inline]

returns true if a complete data packet is in the buffer. retrieve it with get_packet().

References bytes_available().

unsigned int libt2n::connection::peek_packet ( std::string &  data  )

get (maybe incomplete) data of the next packet from the buffer. Does not remove the data from the connection buffer.

Parameters:
[out] data the data package
Return values:
full size of the packet when it will be complete

References buffer.

Referenced by libt2n::command_client::read_hello().

virtual void libt2n::connection::real_write ( const std::string &  data  )  [protected, pure virtual]
void libt2n::connection::remove_incomplete_packets (  )  [protected]

remove all data from buffer that is not a complete packet

References buffer.

Referenced by reopen().

void libt2n::connection::reopen ( void   )  [protected]

reopen a already closed connection, removes incomplete packets from the buffer

Note:
Only call when the connection is closed.
Justs cares about the data of connection, reconnecting has to be done in a derived class.

References closed, do_callbacks(), is_closed(), libt2n::new_connection, and remove_incomplete_packets().

Referenced by libt2n::socket_client_connection::reconnect().

void libt2n::connection::write ( const std::string &  data  )

Member Data Documentation

std::string libt2n::connection::buffer [protected]
std::vector<std::list<boost::function<void ()> > > libt2n::connection::callbacks [private]

vector initialized for all callback-types, all elements in each list will be called

Referenced by add_callback(), do_callbacks(), and get_callback_list().

Referenced by close(), is_closed(), reopen(), and ~connection().


The documentation for this class was generated from the following files:
